ACM-K2B Infrared RFID sensor exit button for doorless access control ACM-K2ABACM-K2B Infrared RFID sensor exit button for doorless access control ACM-K2ABACM-K2B Infrared RFID sensor exit button for doorless access control ACM-K2AB

ACM-K2B Infrared RFID sensor exit button for doorless access control ACM-K2AB

  • Model Number: ACM-K2B
  • Product name: RFID infrared sensor no exit button for door access control

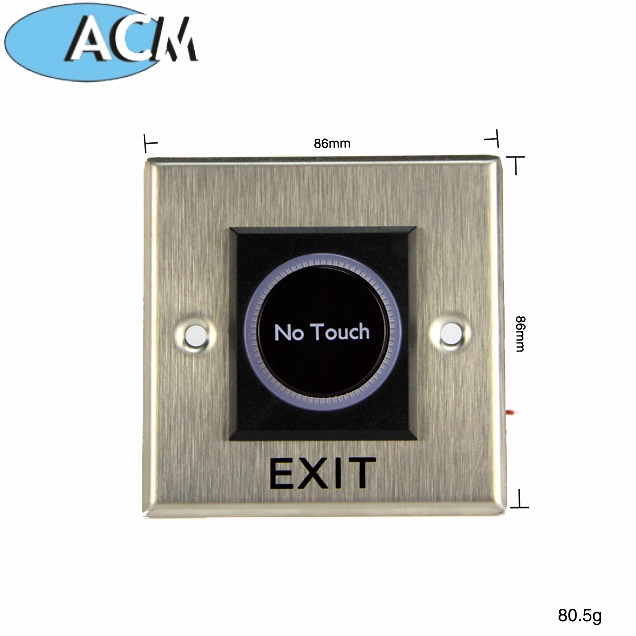

  • Dimensions: 86Lx86Wx29H (mm)
  • Input: DC12V
  • Application: gate / door / exit / automation control
Product description

RFID infrared sensor without door access control exit button

1. Aluminum panel with elegant style

2. Tested at 500,000 cycles

3. Three contact outputs, suitable for all types of locks

4. The best choice for access control

exit button for access control Technical specifications:

Product parameter
Parameter description
Dimensions
86Lx86Wx29H (mm)
Entrance
DC12V
Contact evaluation
12-28V, 3A
Output contact
NO / NC / COM
Mechanical life
500000 tested
Suitable for door
Empty door
Operating Temp
-20 ℃ ~ + 55 ℃ (14-131F)
Suitable humidity
0-95% (relative humidity)
Detection range
0.1-10 cm
LED indicator
White LED indicator: power off
Blue LED indicator: power on (standby)
Red LED indicator: power on (feeling)
Weight
0.15 kg

exit button for access control Advantage:

. Touchless / non-contact output sensor (diffuse detection)

· Optical / infrared technology
IP-55 ingress protection / SUS 304 stainless steel plate
Easy to use (healthy protection)
·· Free from widespread contagious diseases
Sensing range: 0.1 ~ 10cm
Application: gate / door / exit / automation control
High capacity of the dry contact of the relay (3A / AC120V, DC30V)
· Normally Open / Normally Closed / Common relay output
Double led indicators for sensor waiting or approached:
(1) Sensor standby: BLUE LED ON
(2) Visitors who have approached the sensor in 10 cm: RED LED ON

Detailed images
Blue LED indicator
Red LED indicator
Power On (Standby)
Power on (activated

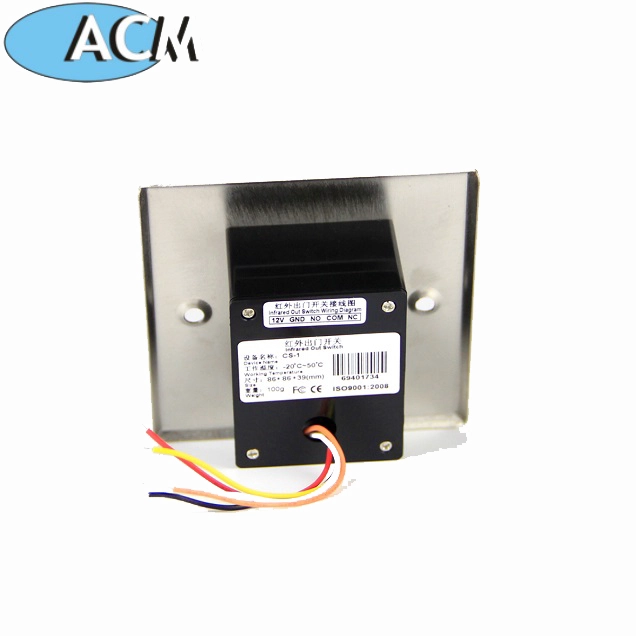

+ 12V
Google Display Network
NO
COM
NC
Red
Black
Yellow
white
Orange

Click here to order and get your FREE SAMPLE in 3 days !!!
We are professional suppliers of full security access control products with 20 years of experience, we make sure to offer the best access control system solution! So, submit your inquiry details below, click "Submit" now!
We are looking forward to forging successful business relationships with new customers around the world in the future.

Application
Packaging and delivery

Unit Type: Piece

Package Weight: 0.3kg

Package Size: 10cm x 10cm x 8cm


Shipping way

We have been one of the leading exporters of RFID products in China for 2000 years. With rich experience in international trade, we know international shipping very well, we know which express or air / sea line is cheap and safe for your country. We can provide various certificates to clean your habit like CO, FTA, Form F, Form E ... ect. We will provide our professional shipping suggestion. EXW, FOB, FCT, CIF, CFR ... trade terms are ok for us. We can be your reliable partner for products and shipments.

Yours may need

We can supply many kinds of door switches. Touch, No touch, glass break, key switch. Click on the photo above to find more details. Or do not hesitate to send us a request to ask for the price list.

No touch Door Realese Exit Button

K2B: 86 * 86mm

No touch Door Realese Exit Sensor
K9A: 115 * 40mm

Door release button, (stainless steel, NO / NC) K5B: 86 * 86mm

Door release button, (steel, aluminum, NO), K4B: 86 * 86mm

High quality Kirsite made of stainless steel. K14B: 86 * 86mm

PUSH door opener button in stainless steel; K815B: 86 * 86mm
